600×900 jaw crusher is a commonly used medium-sized crushing equipment. It is widely used in mining, building materials, road construction and other fields due to its high efficiency and stable performance. The feed port size of this equipment is 600×900 mm, which is suitable for processing materials with a maximum particle size of no more than 500 mm. The applicable scope includes granite, basalt, limestone, iron ore and other hard materials with a compressive strength of no more than 320MPa. The equipment has strong crushing capacity, and the discharge particle size can be adjusted between 65-160 mm according to demand. The production capacity is generally 50-120 tons per hour, which can meet the needs of small and medium-sized production lines. The whole machine weighs about 16 tons and is equipped with a 55-kilowatt motor. It has reasonable energy consumption, stable operation, and is suitable for long-term continuous work. The 600×900 jaw crusher adopts a simple and reliable structural design, easy maintenance, and low failure rate. Its high crushing ratio and uniform finished product particle size make it the preferred equipment in mining and sand and gravel production. At the same time, this model also performs well in the railway, chemical and other industries, and has high economic value and application potential.
Advantages of 600×900 jaw crusher
Strong crushing capacity and wide application range
The feed port size of this equipment is 600×900 mm, which can handle materials with a maximum feed size of 500 mm. The discharge size range is flexible and adjustable (65-160 mm), which can meet a variety of crushing needs. It is suitable for crushing materials with a compressive strength not exceeding 320MPa, such as granite, basalt, limestone, iron ore, etc., and is widely used in mining, building materials and sand and gravel production.
High production efficiency and stable output
The 600×900 jaw crusher has a crushing capacity of 50-120 tons per hour, which can ensure uniform product quality while maintaining efficient production. Its optimized structural design and scientific crushing chamber configuration improve the material passing capacity and crushing efficiency.
Simple structure and easy maintenance
The equipment adopts a simple and reliable structural design, and the parts are easy to disassemble and replace. The maintenance work is simple and quick, which greatly reduces the user's later maintenance cost. Even if it runs for a long time, its failure rate is relatively low.
Low energy consumption and strong economy

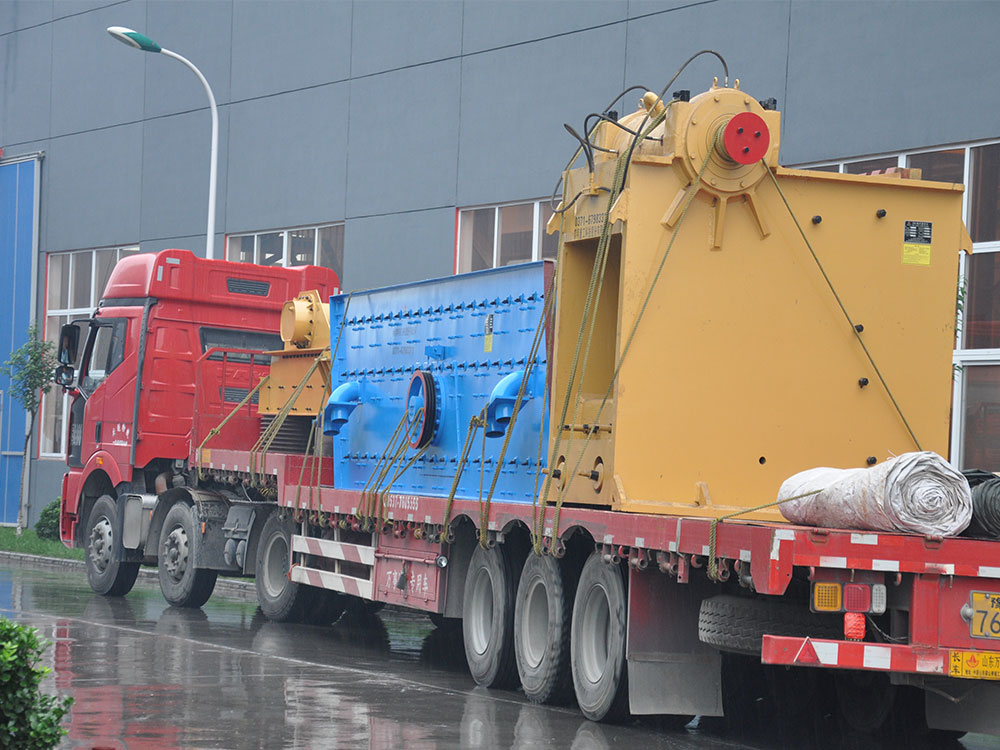

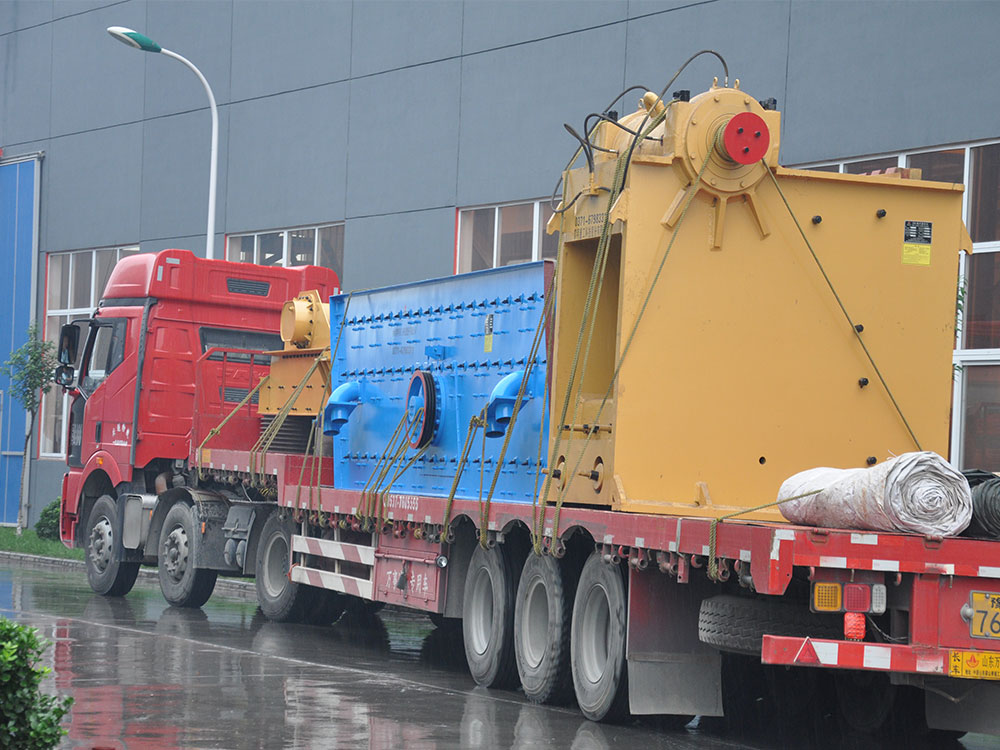

Equipped with a 55-kilowatt motor, it has low operating energy consumption, which can effectively reduce production costs. At the same time, the whole machine weighs about 16 tons, which is relatively convenient to transport and install, and is suitable for the economical production needs of small and medium-sized enterprises.
Widely used and high return on investment
This model has excellent performance and strong adaptability in many industries such as mining, metallurgy, chemical industry, building materials, roads and railways. Its high crushing ratio and good output particle size enable users to obtain higher production efficiency and better economic benefits, and it is a reliable investment choice.
Working Principle of 600×900 Jaw Crusher
600×900 jaw crusher is an efficient equipment that realizes material crushing through mechanical transmission. Its working principle is simple and reliable. It mainly relies on the relative movement of the movable jaw and the fixed jaw to complete the crushing operation. When the equipment is running, the motor drives the eccentric shaft to rotate through the pulley, and the rotation of the eccentric shaft causes the movable jaw suspended on it to swing up and down. When the movable jaw approaches the fixed jaw, the angle between the two jaws becomes smaller, and the material is crushed by extrusion, friction and splitting; when the movable jaw leaves the fixed jaw, the angle between the two jaws increases, and the crushed material is discharged from the discharge port under the dual action of deadweight and swing of the movable jaw. The whole crushing process is repeated, and the material is continuously crushed and discharged in the crushing chamber until the preset particle size requirements are reached. The discharge particle size of the equipment can be controlled by adjusting the width of the discharge port to meet different process requirements. The 600×900 jaw crusher adopts a deep cavity design, which effectively improves the feeding capacity and crushing efficiency. At the same time, it runs smoothly, has low energy consumption, low failure rate, and is suitable for long-term stable operation. This principle ensures the high efficiency and reliability of the equipment in the fields of mining, sand and gravel production, and is an ideal choice for users to achieve high-quality crushing operations.
Technical parameters of 600×900 jaw crusher
| Output | 50-120t/h | Discharge size | 3-13 mm |
| Feed port size | 600×900mm | Motor power | 55 kW |
| Feed particle size | ≤500mm | Weight | 16t |
600×900 jaw crusher case and customer evaluation
Project background

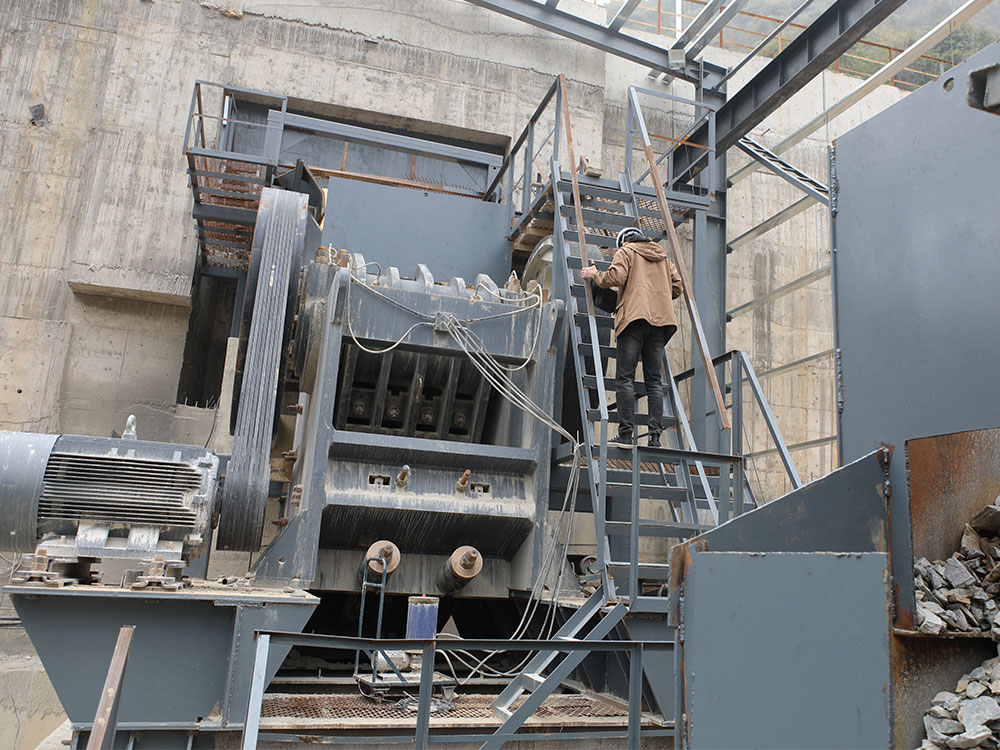

A construction company in the Philippines undertook a local infrastructure construction project and needed a large amount of high-quality sand and gravel aggregates as construction raw materials. In order to improve production efficiency, the company decided to introduce a 600×900 jaw crusher for coarse crushing of granite.
Equipment configuration and process

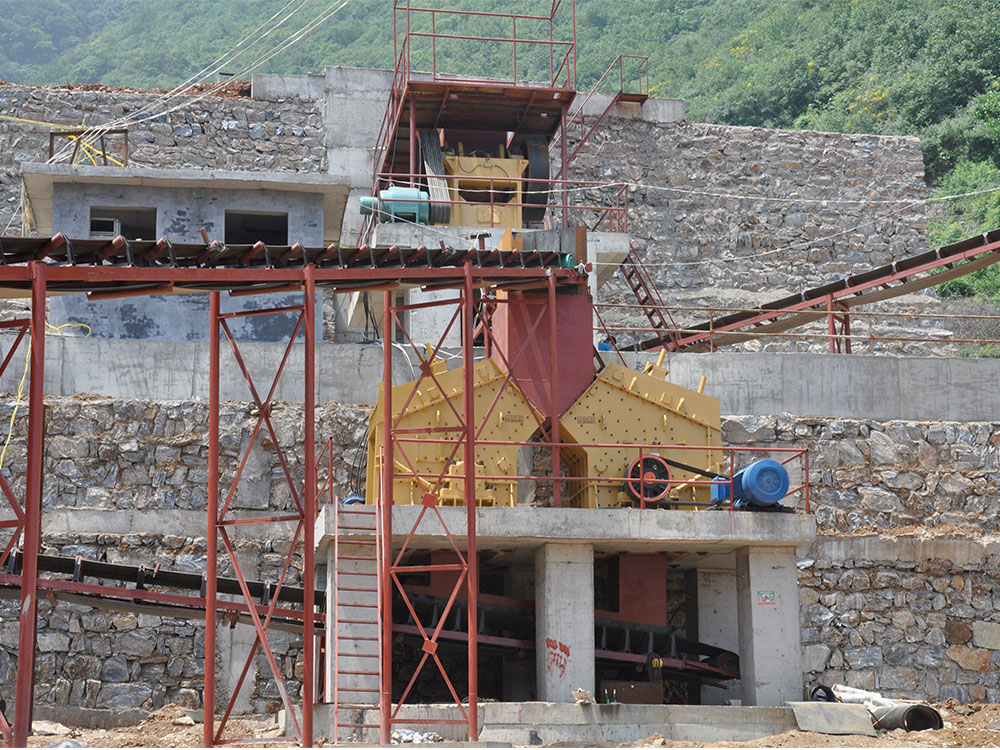

Equipment configuration: 600×900 jaw crusher is used as coarse crushing equipment, and the impact crusher is used to complete the secondary crushing. The vibrating screen is used to screen qualified aggregates.
Process flow: The material is sent to the 600×900 jaw crusher by the loader for the first stage of coarse crushing. The crushed material is sent to the impact crusher through the conveyor belt for further processing, and finally the finished aggregates of different specifications are screened out for road and bridge construction.
Customer Comments
"I was impressed by the maintenance. The structural design of the 600×900 jaw crusher is simple and reasonable, and the parts are easy to disassemble and replace. Even under limited on-site conditions, we can quickly complete maintenance work, reduce downtime and improve overall efficiency."
"This equipment has a very strong crushing capacity. In our project, we mainly deal with hard granite, and the maximum feed size of this equipment reaches 500 mm, which fully meets the needs. Moreover, its output size range is flexible and adjustable, and the aggregate produced is uniform in size and high in quality."
